Metal Surface Preparation & Protective Coatings

   We are involved in industrial and municipal rehabilitation projects where the existing aged coatings system is failing or failed, exposing the metal to oxidization and causing structural damage due to corrosion.



Steel Rehabilitation Projects

   We specialize in the application of protective epoxy coatings. With proper surface preparation and using approved application methods, a quality epoxy coating system can have a predicted life expectancy of over 20 years.

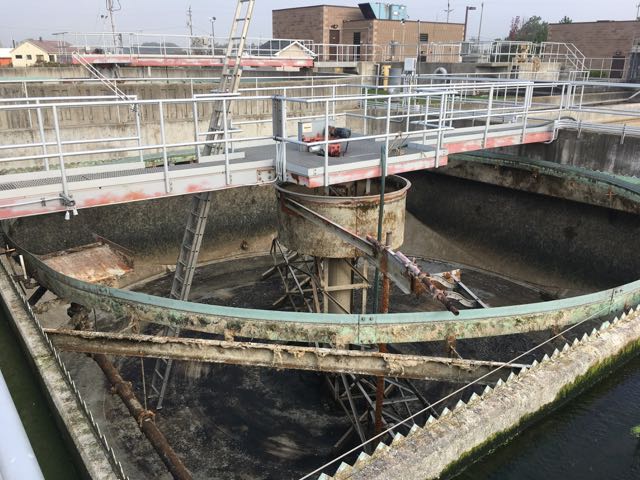

(Before rehabilitation)

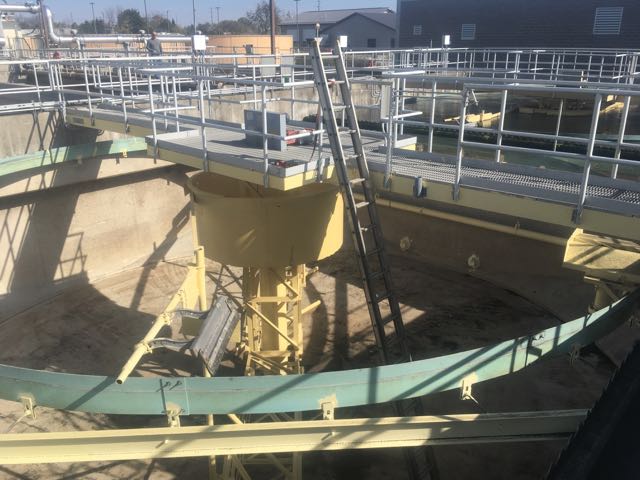

   Existing failed coating at the Hagersville Waste Water Treatment Plant.

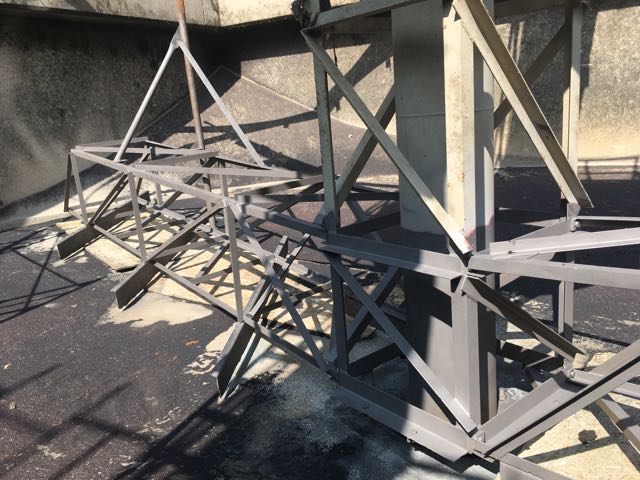

(Agitator arm has been sandblasted)

   After abrasive blast cleaning to SSPC-SP 6 - Commercial Blast Cleaning.

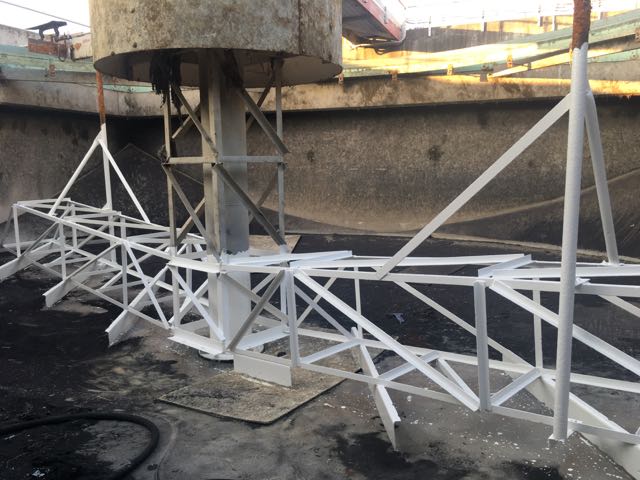

(Agitator arm has received first layer of epoxy coating.)

   We used a protective immersion epoxy coating system consisting of several coats in this particular application.





   Another original coating section is sandblasted and another layer of epoxy coating is applied to the arm.




   This process is repeated until the entire project is complete. We ensure the coating thickness during application using a wet film gauge and after curing using a dry film thickness gauge. Ensuring coating thickness is met to assure quality performance of the coating system for years to come.

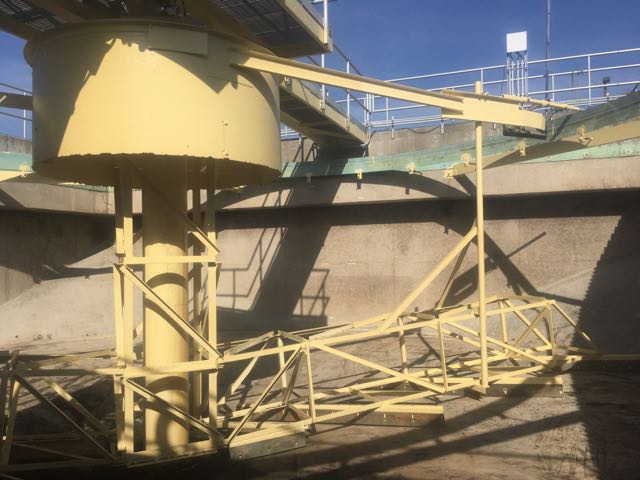

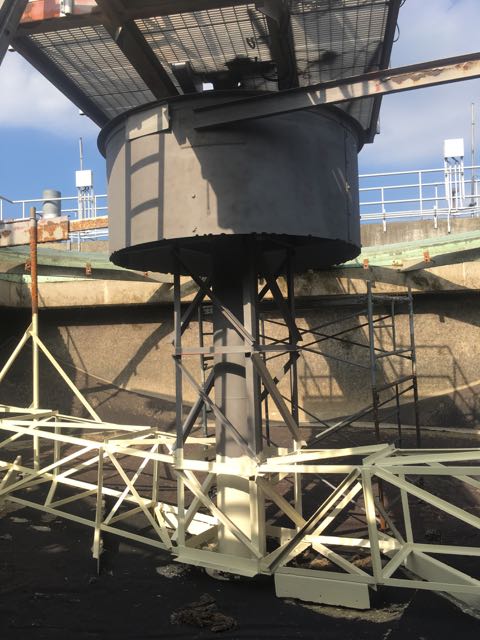

   The finished product is ready for immersion at the waste water treatment plant.

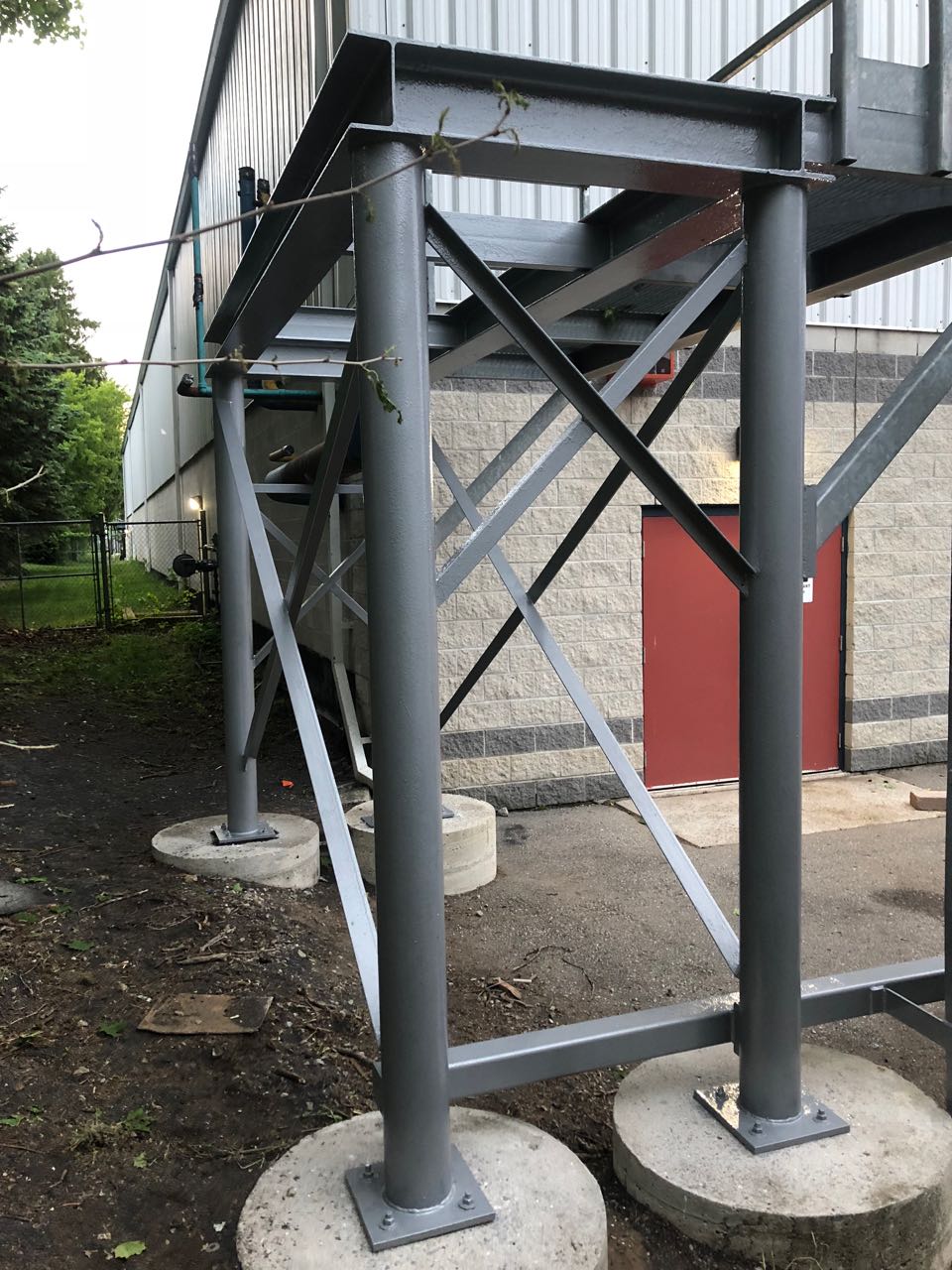

Arena Condenser


   We service a wide range of structural steel applications.

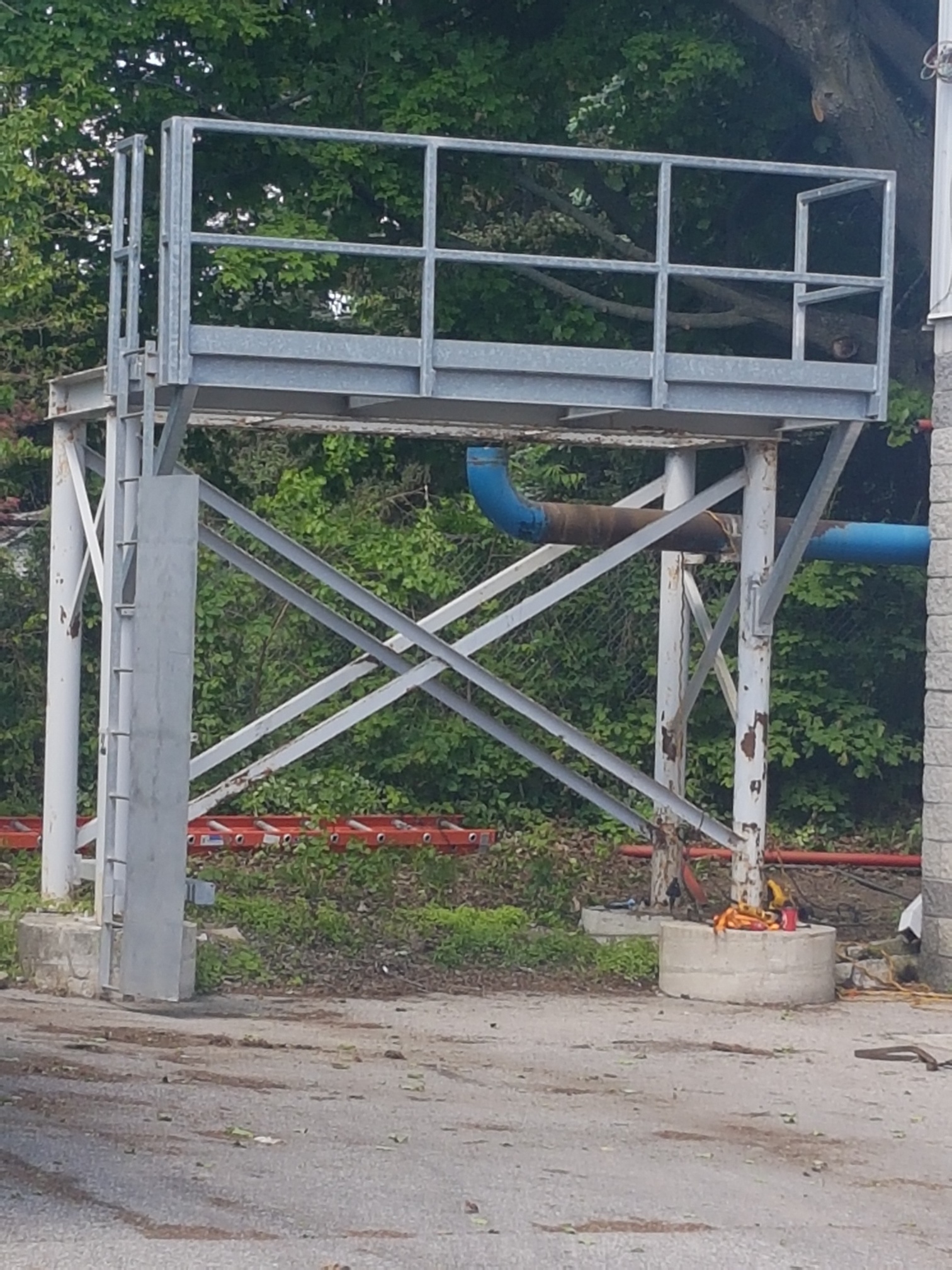

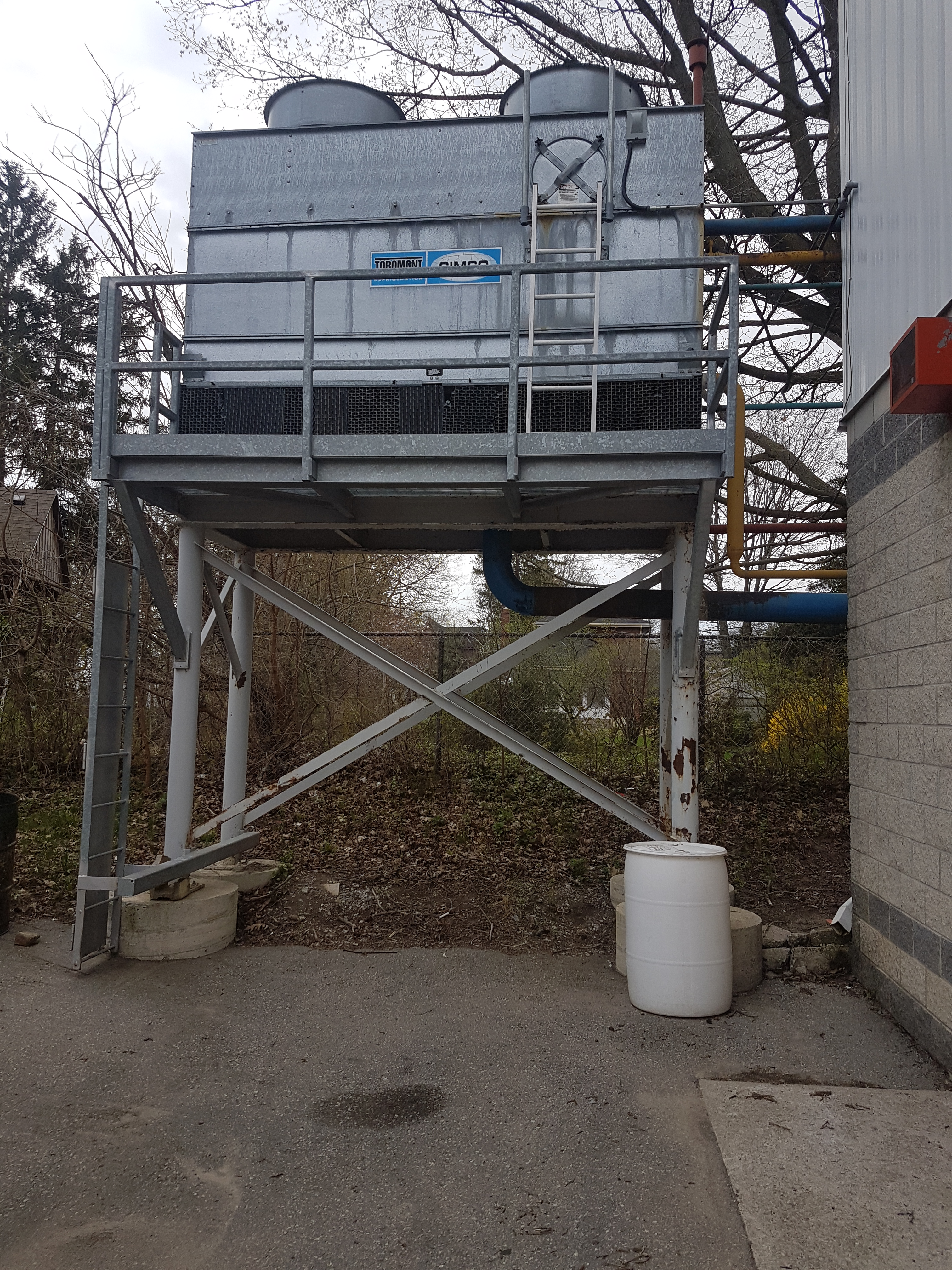

   Existing aged coatings.

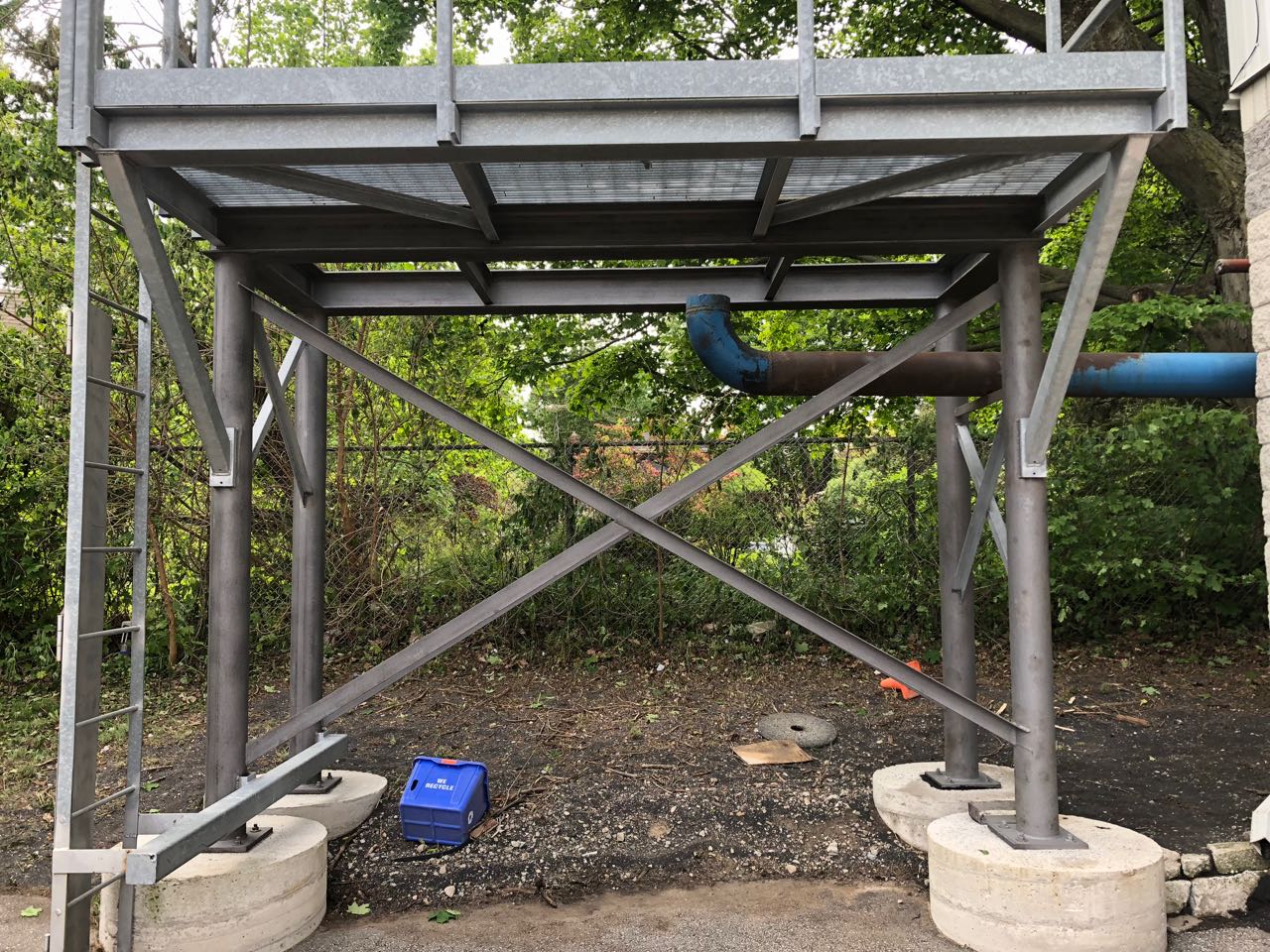

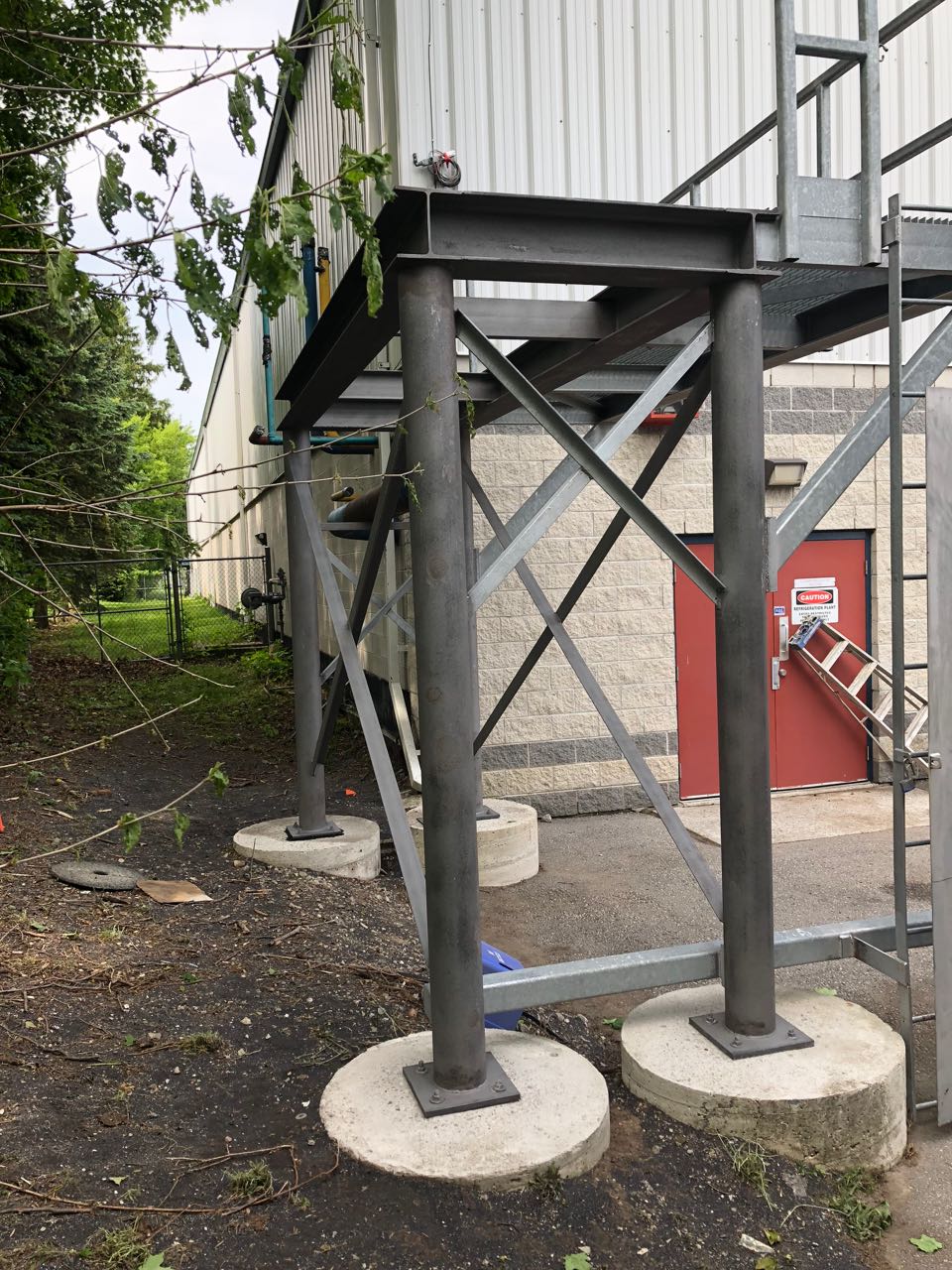

   After abrasive blast cleaning to SSPC-Sp 6 - Commercial Blast Cleaning.





   After primer application of PPG Amercoat 370

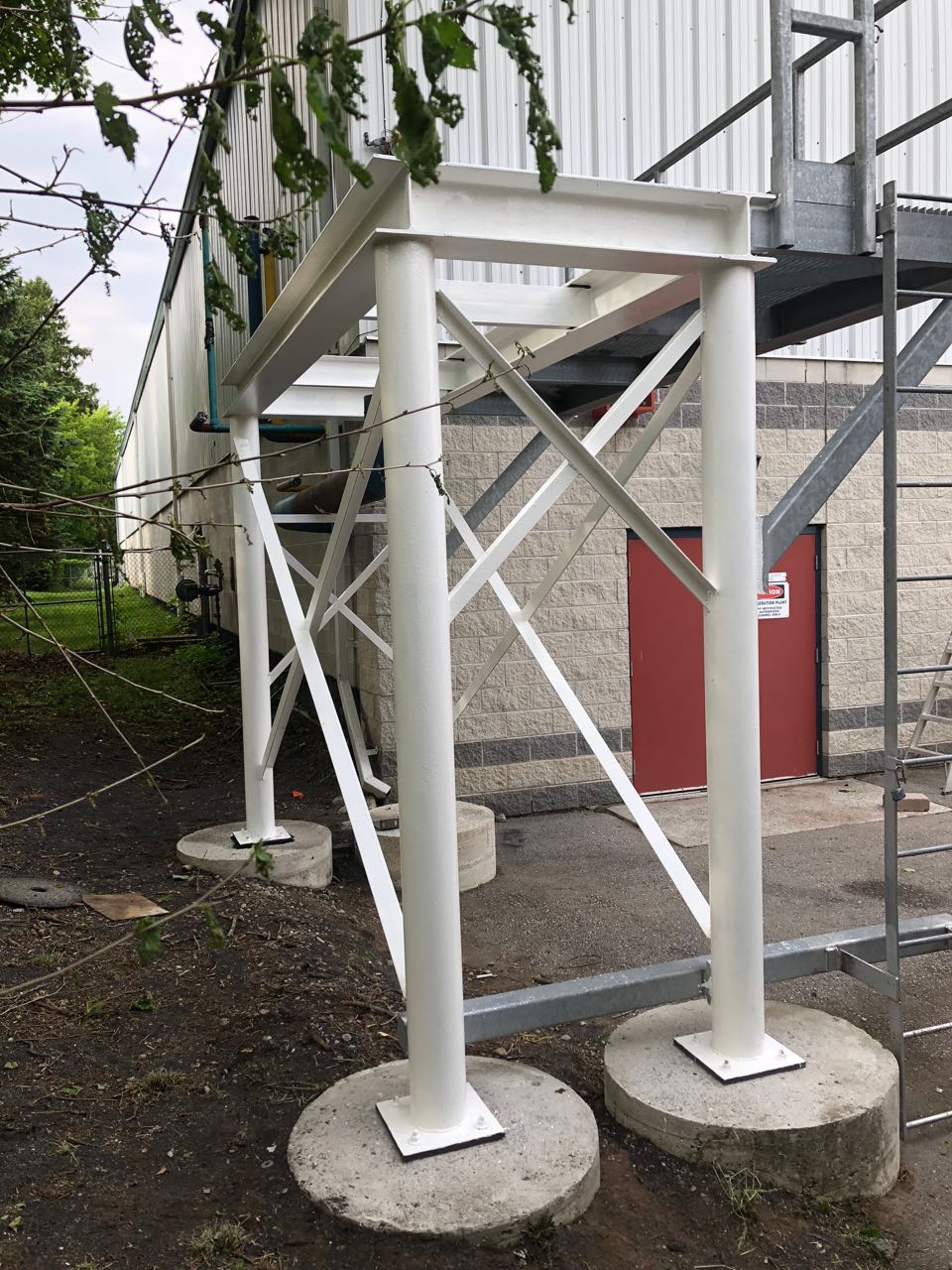

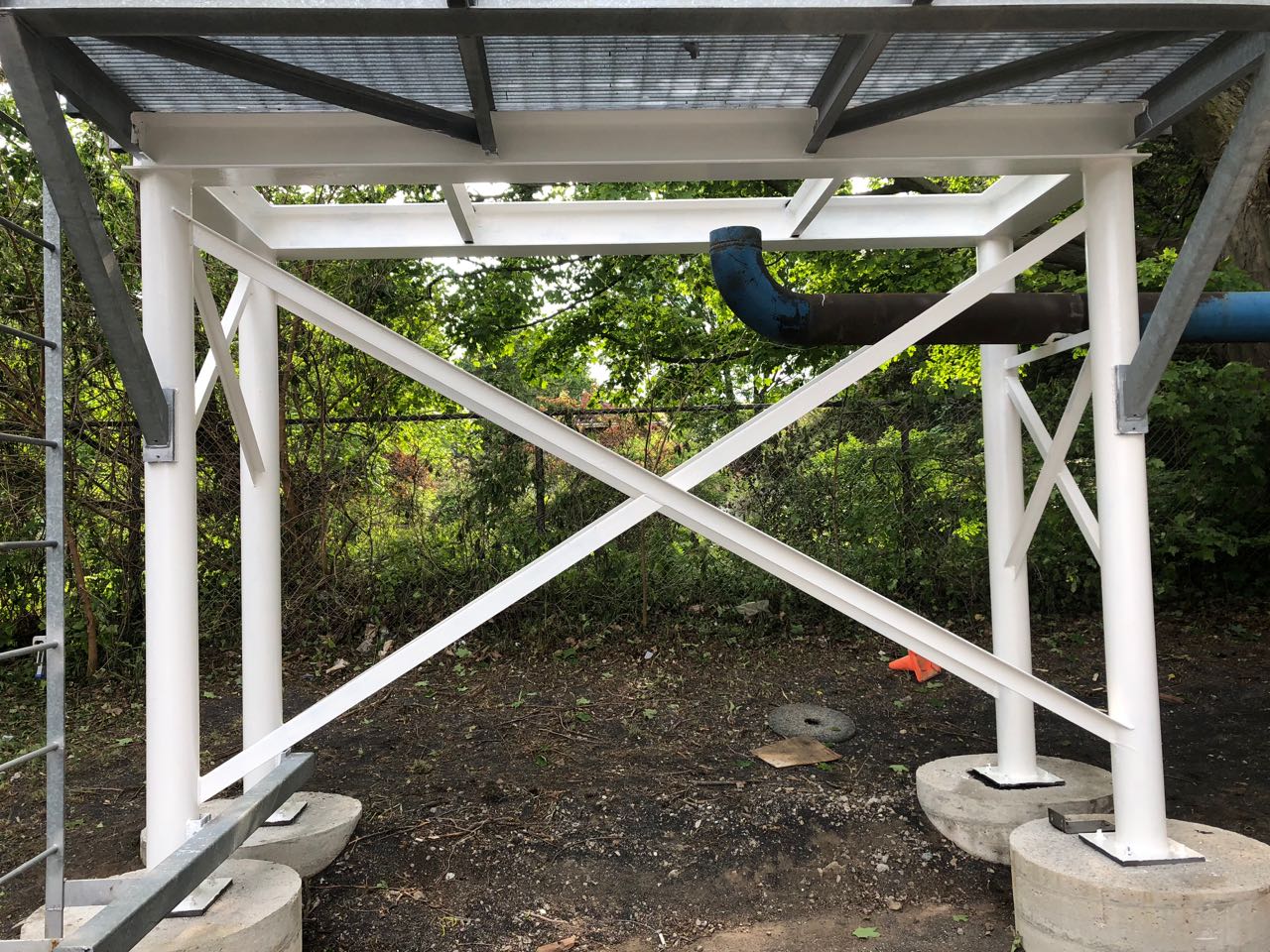

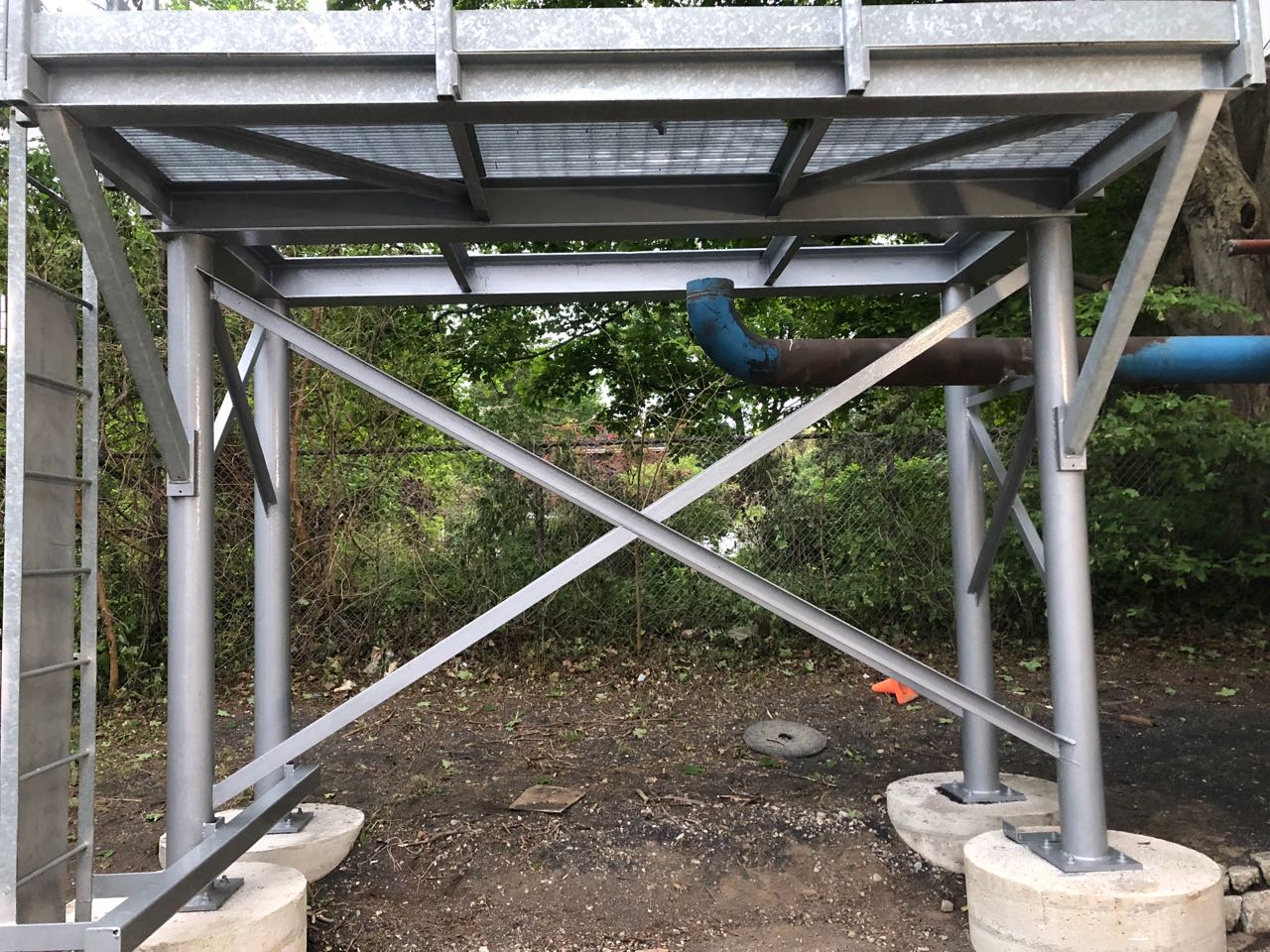

   After top coat application of PPG Amerlock 2 - Aluminium.

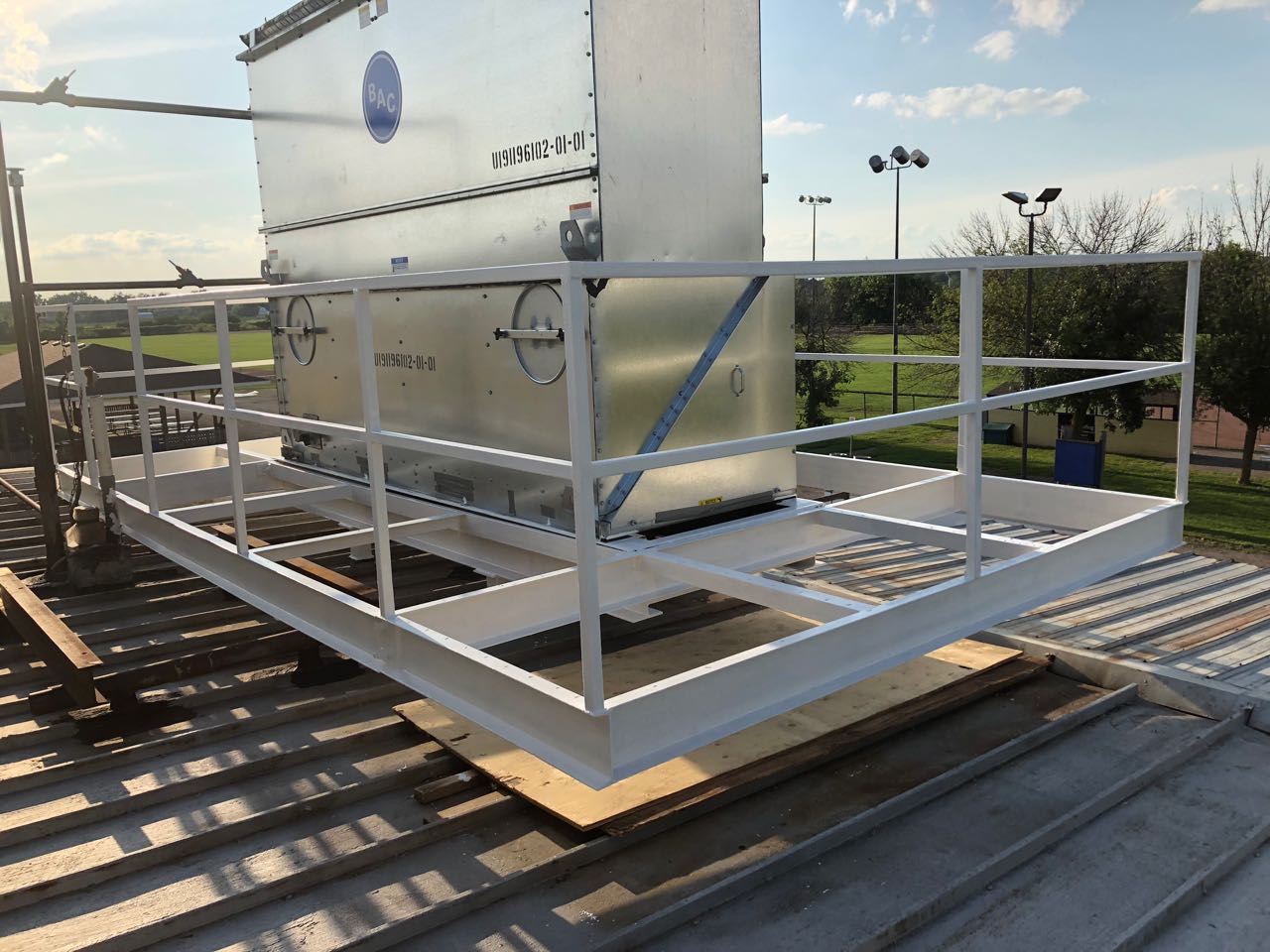

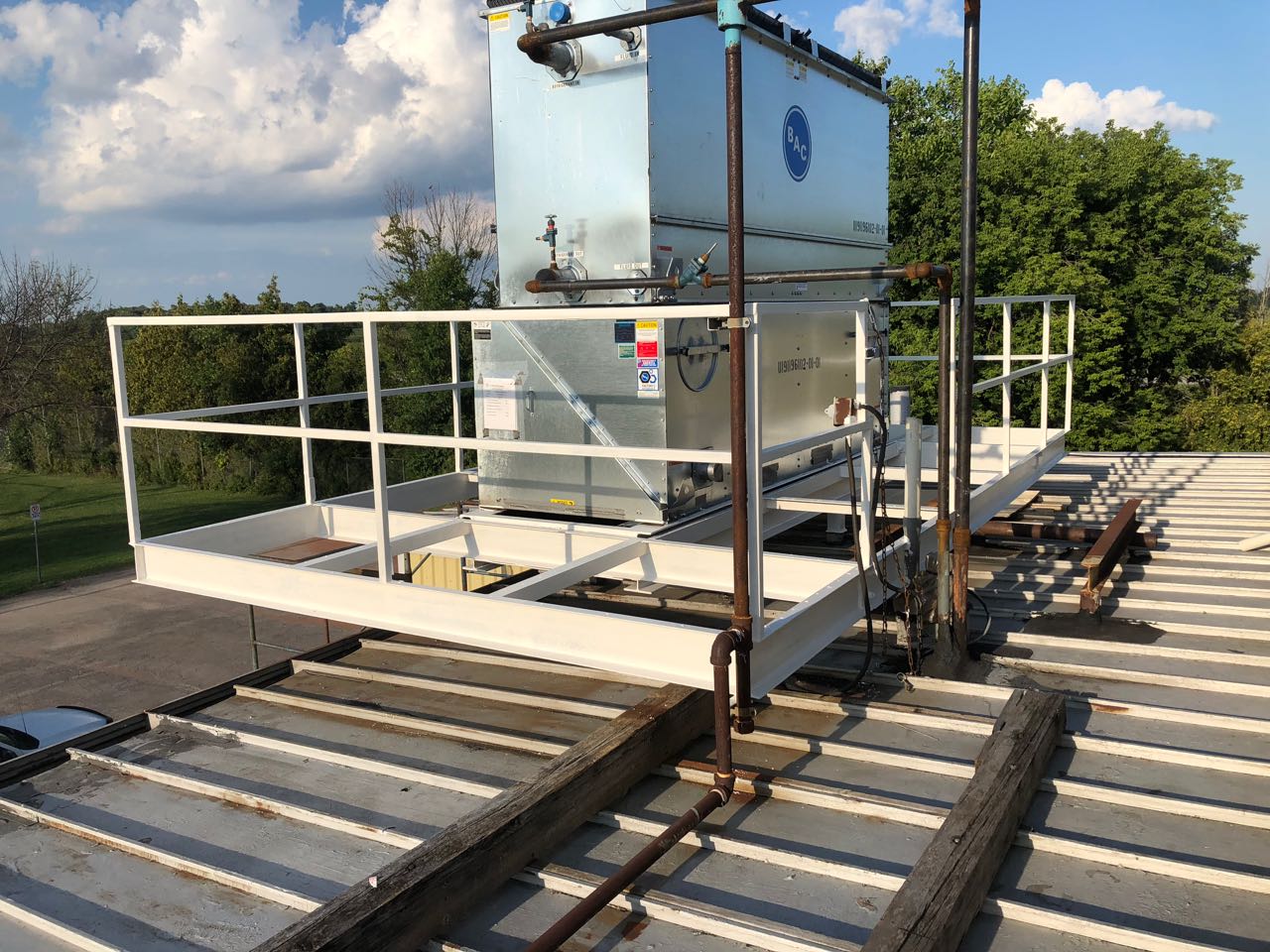

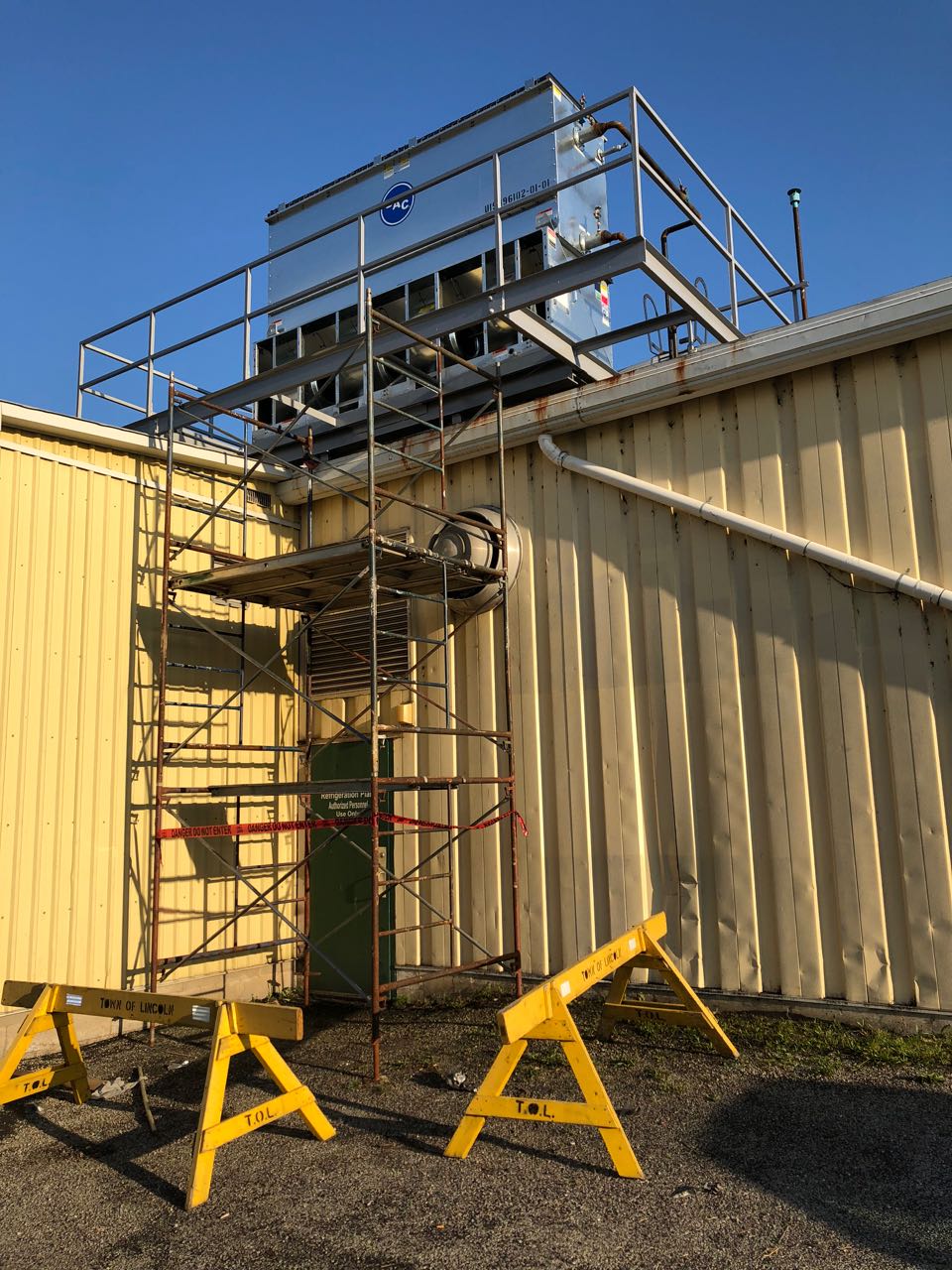

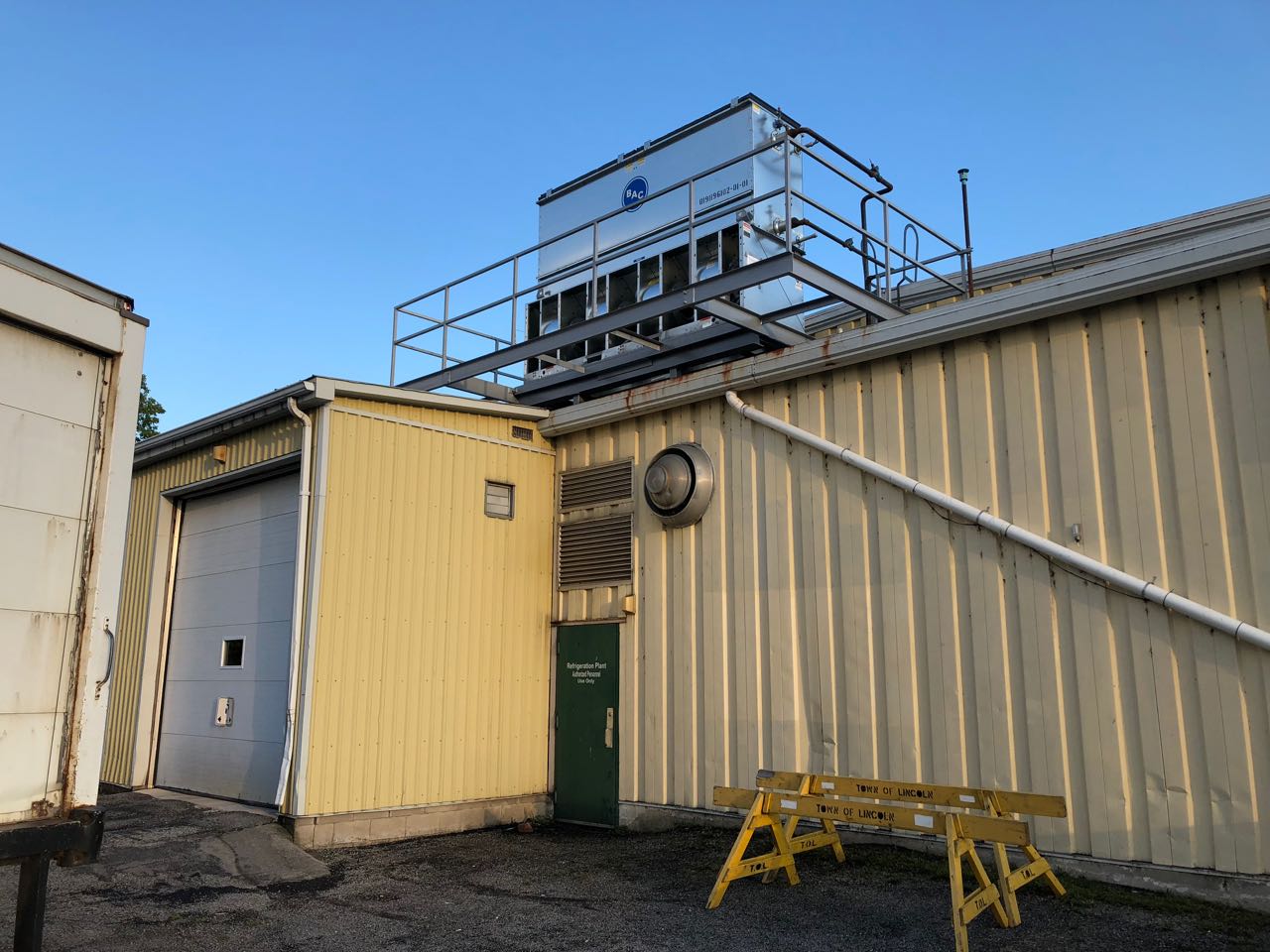

Arena Rooftop Condenser

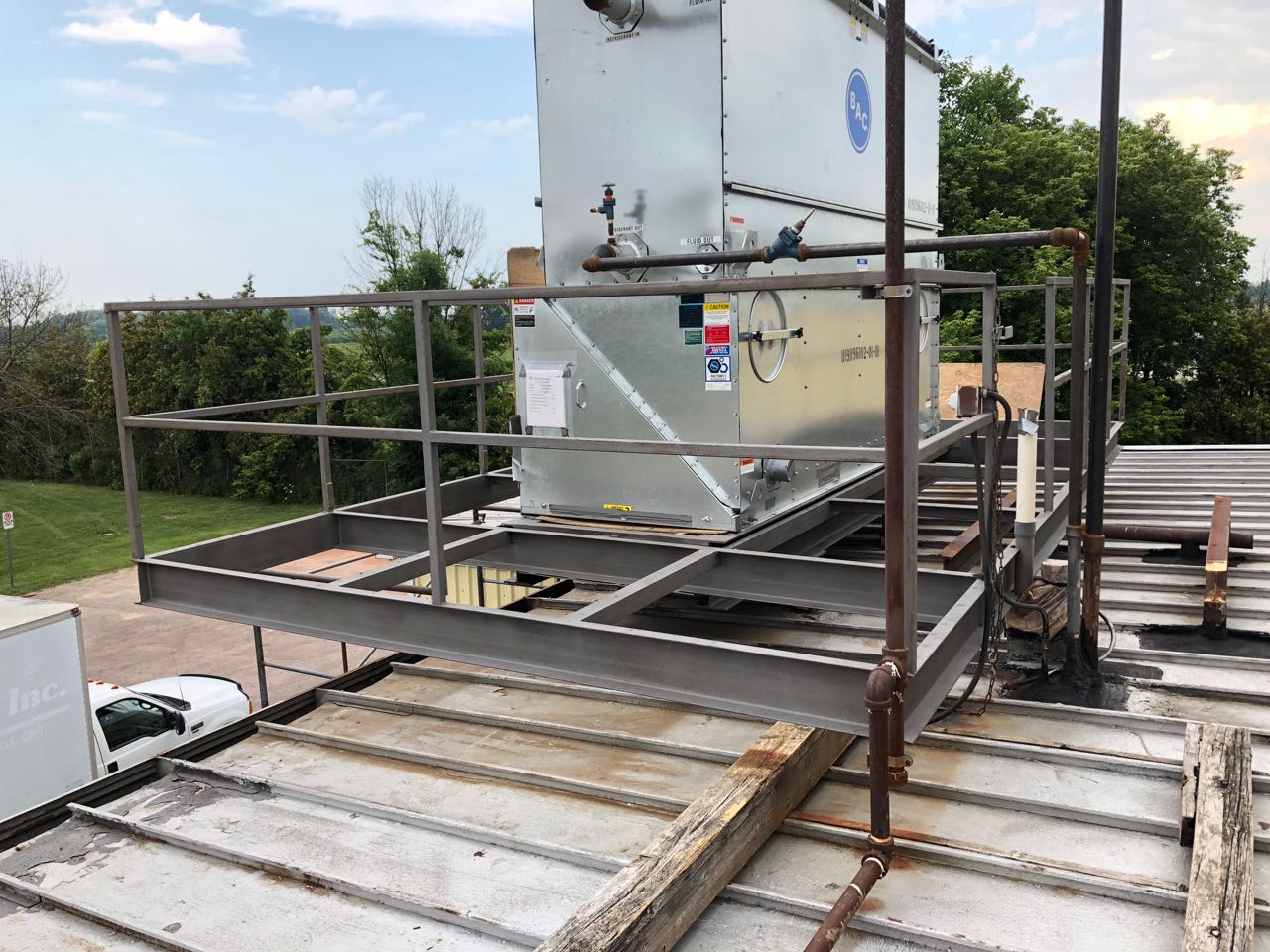

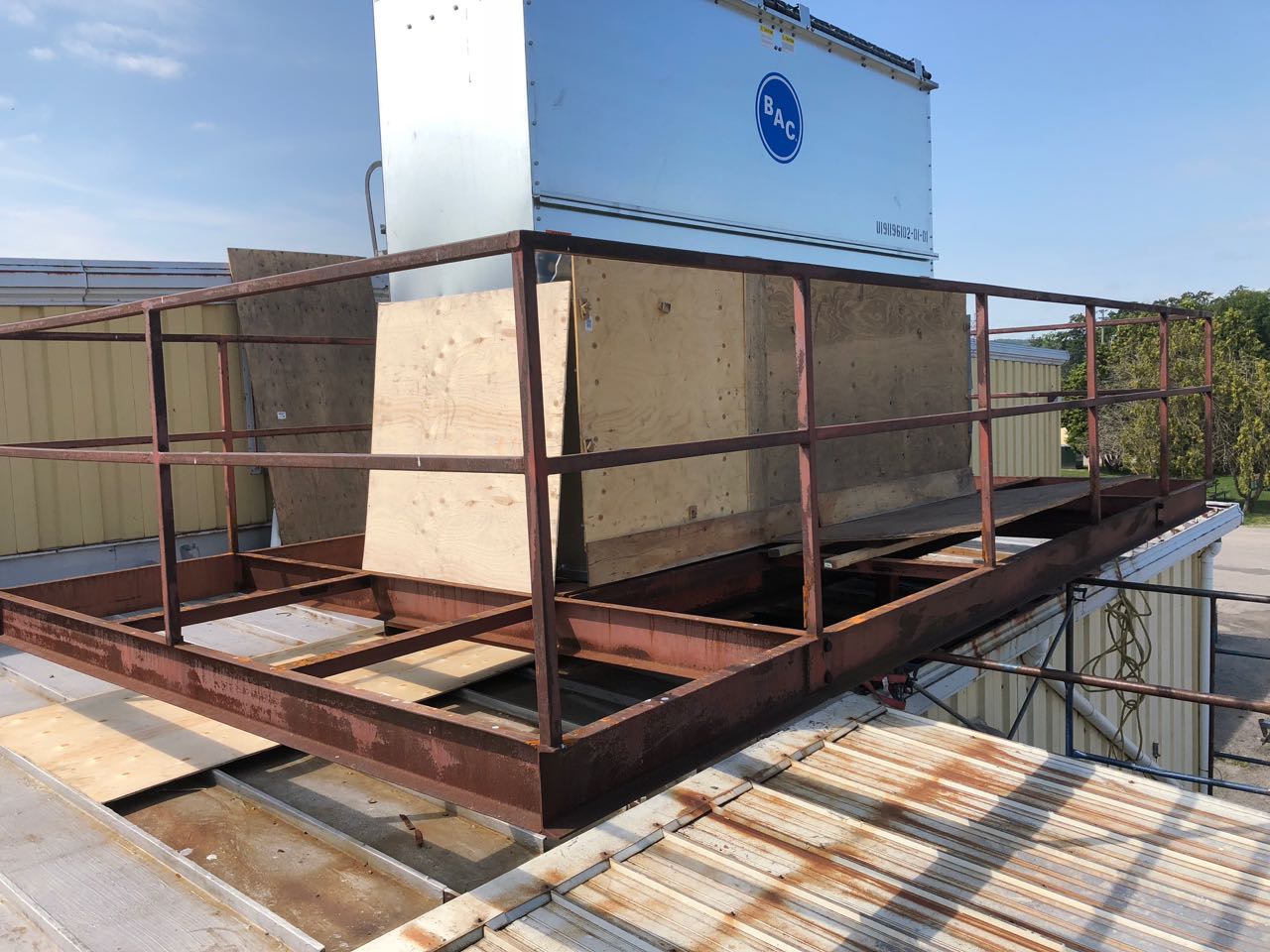

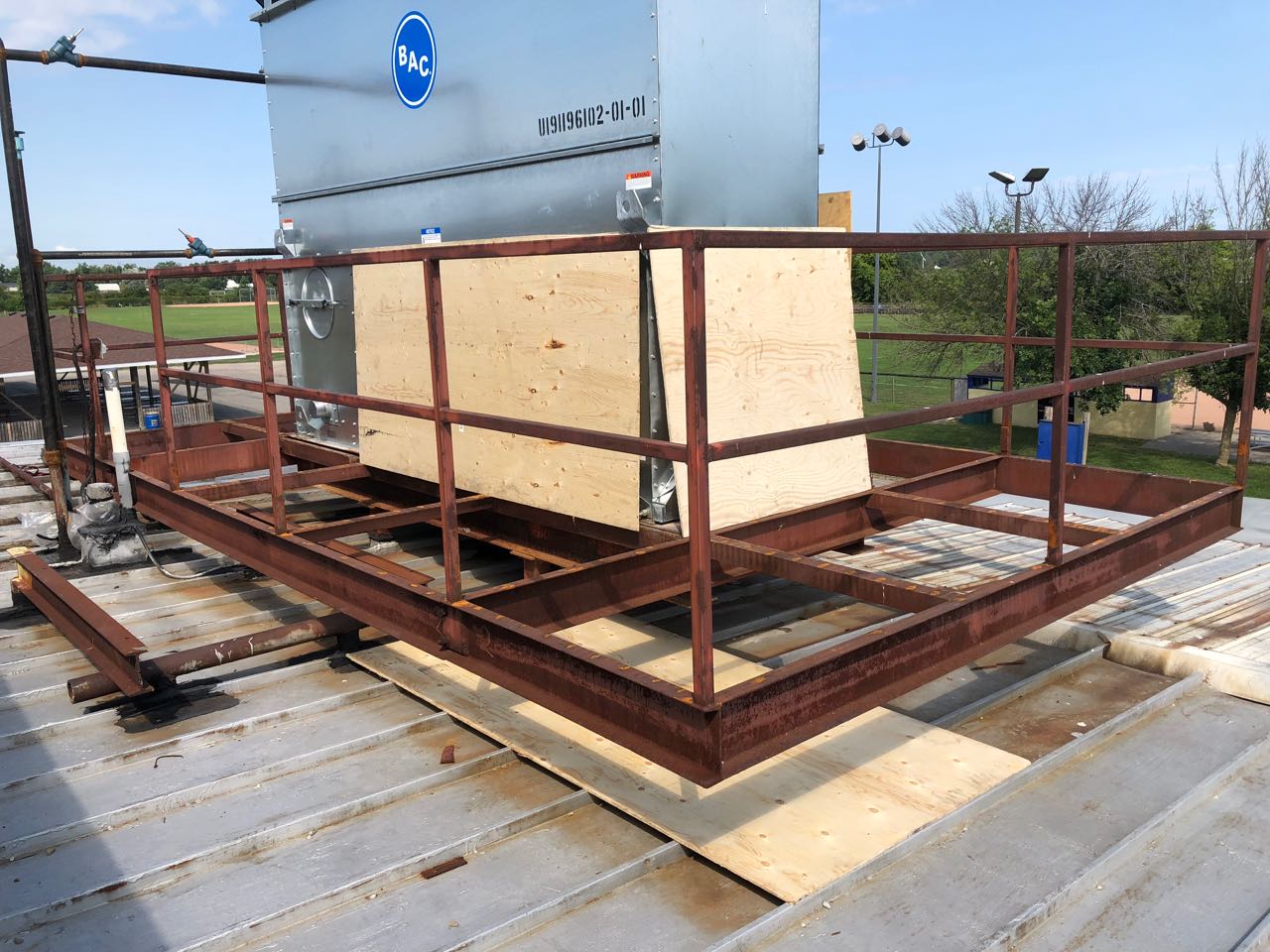

   Existing aged coating & heavy corrosion

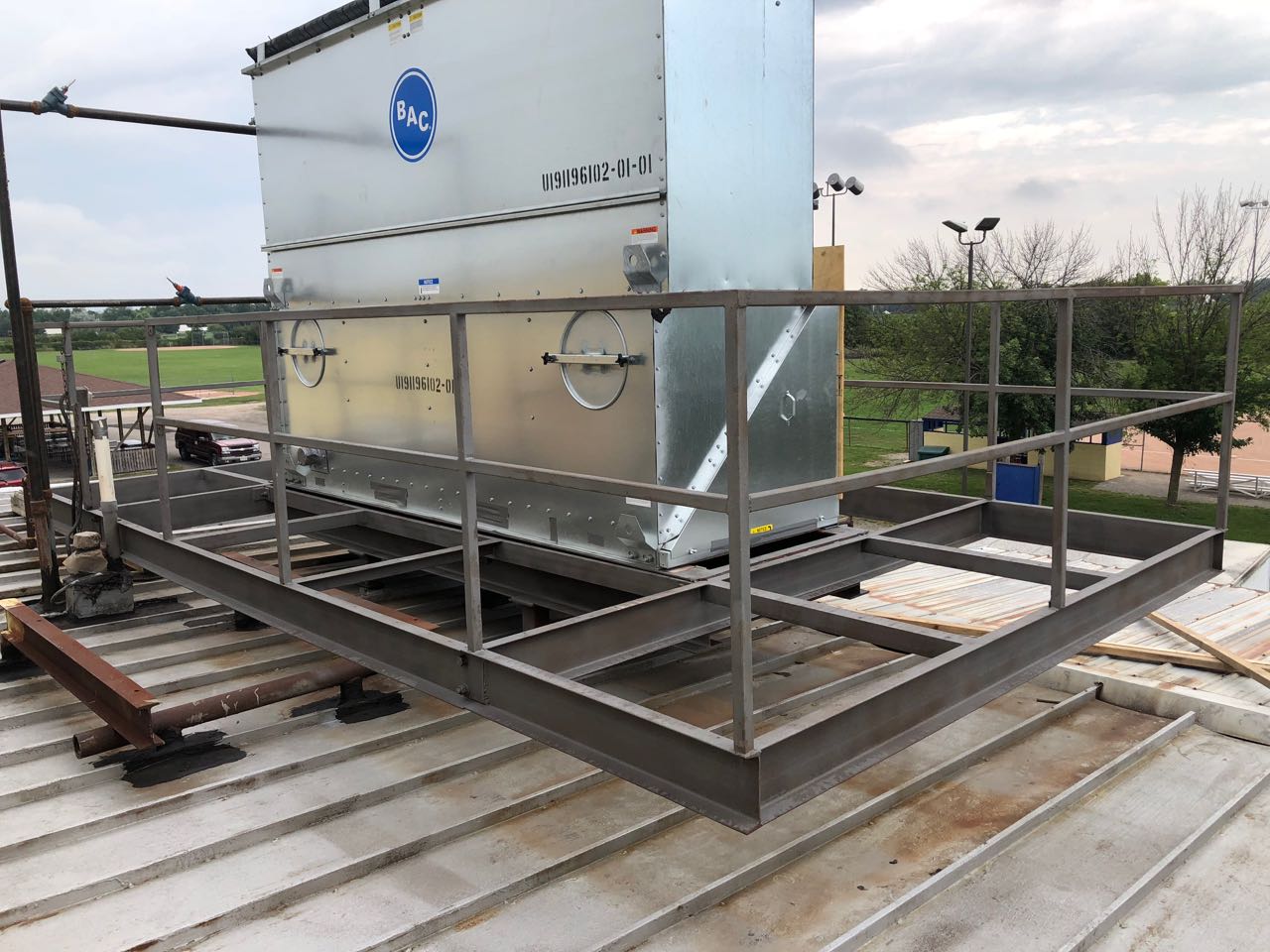

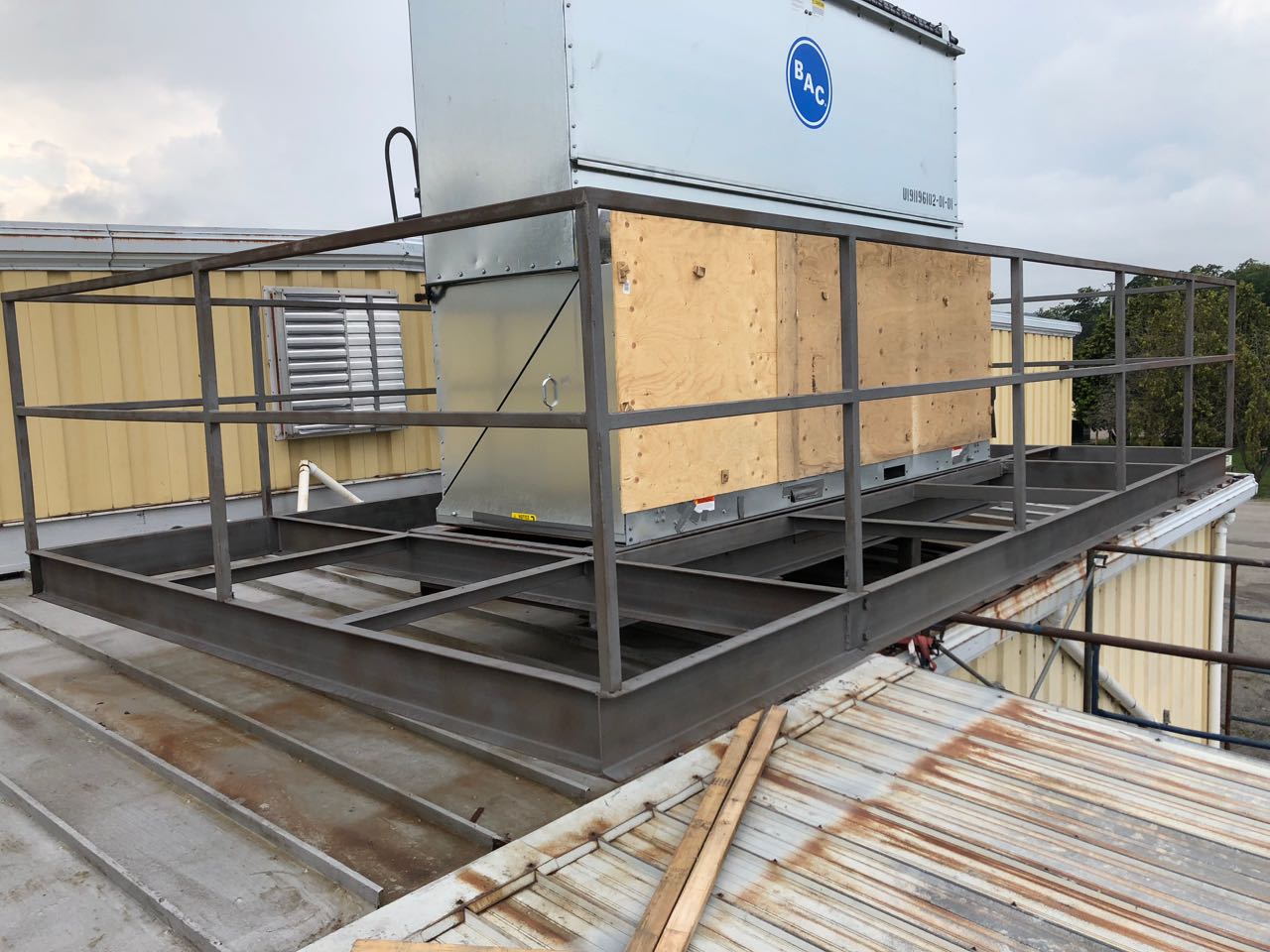

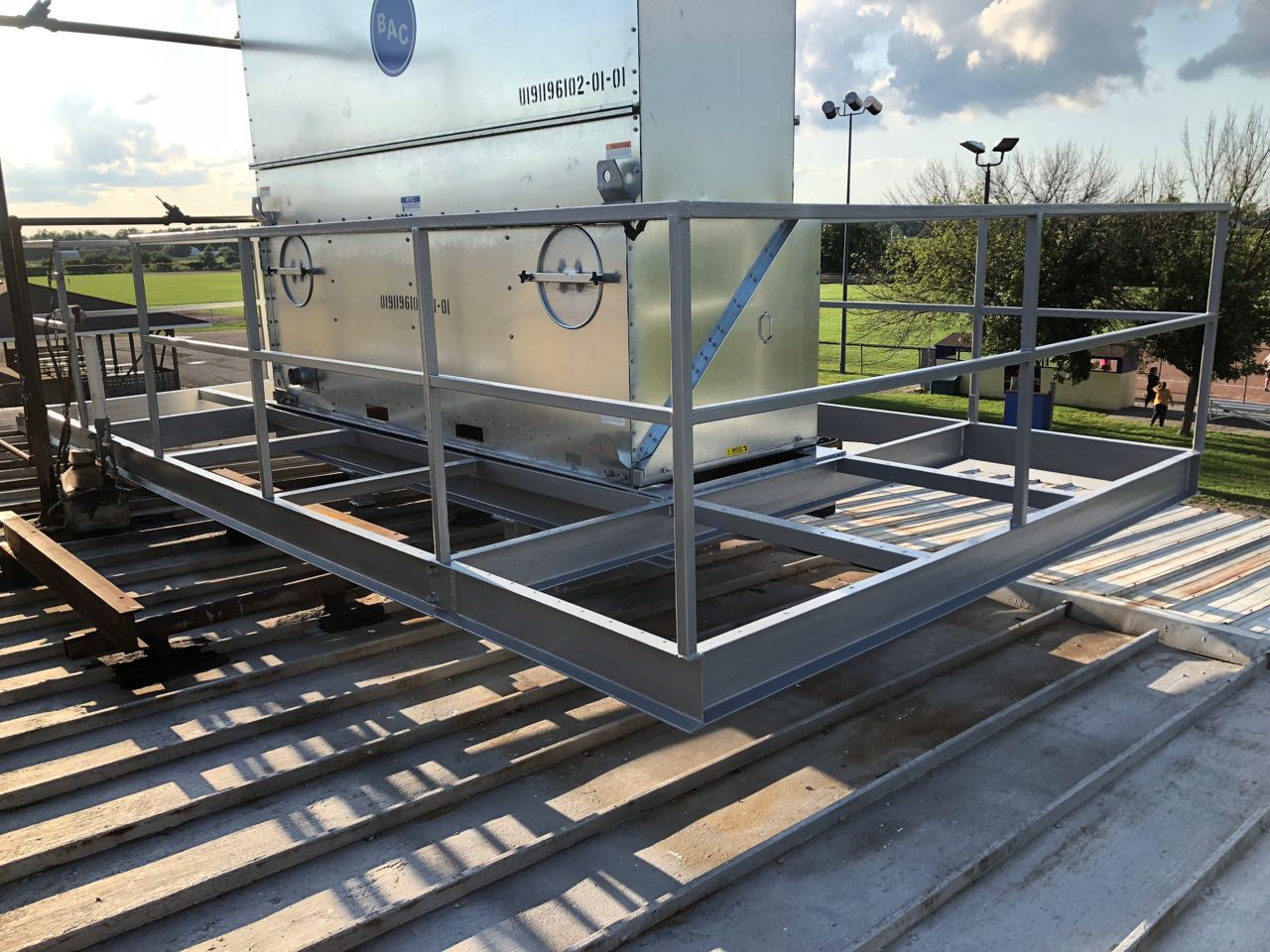

   After abrasive blast cleaning to SSPC-SP 6 - Commercial Blast Cleaning.





   After primer applications of PPG Amercoat 370.

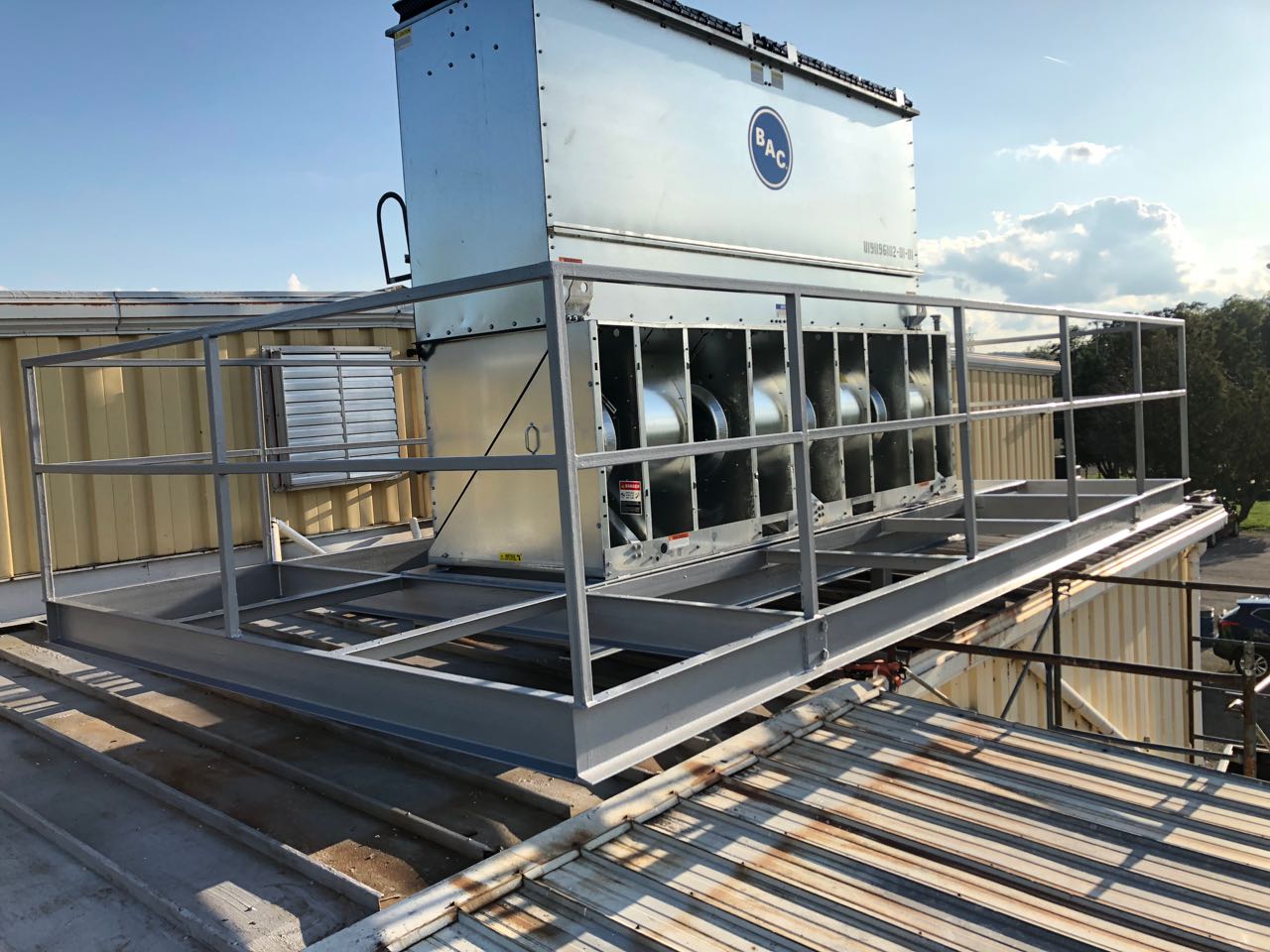

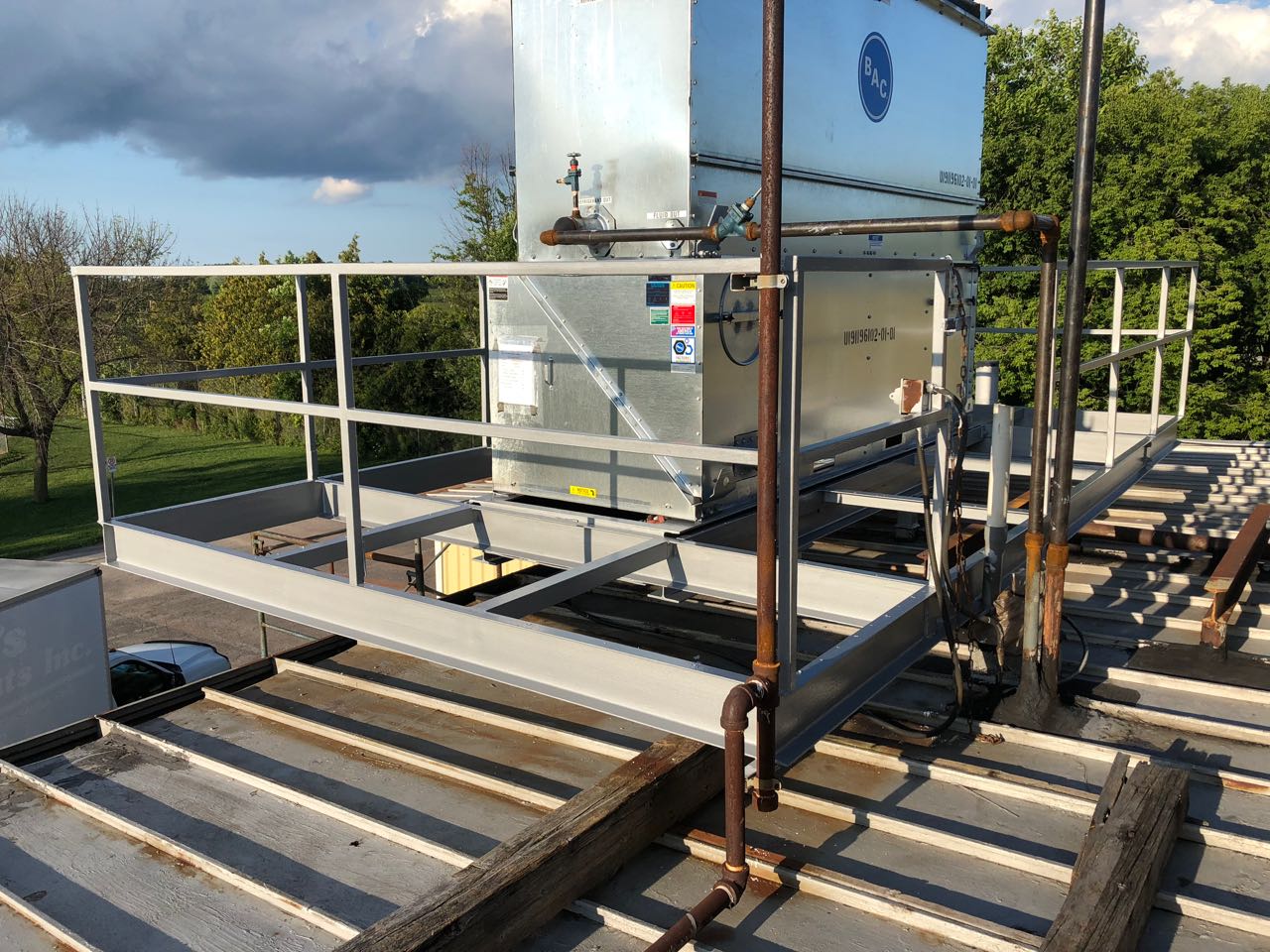

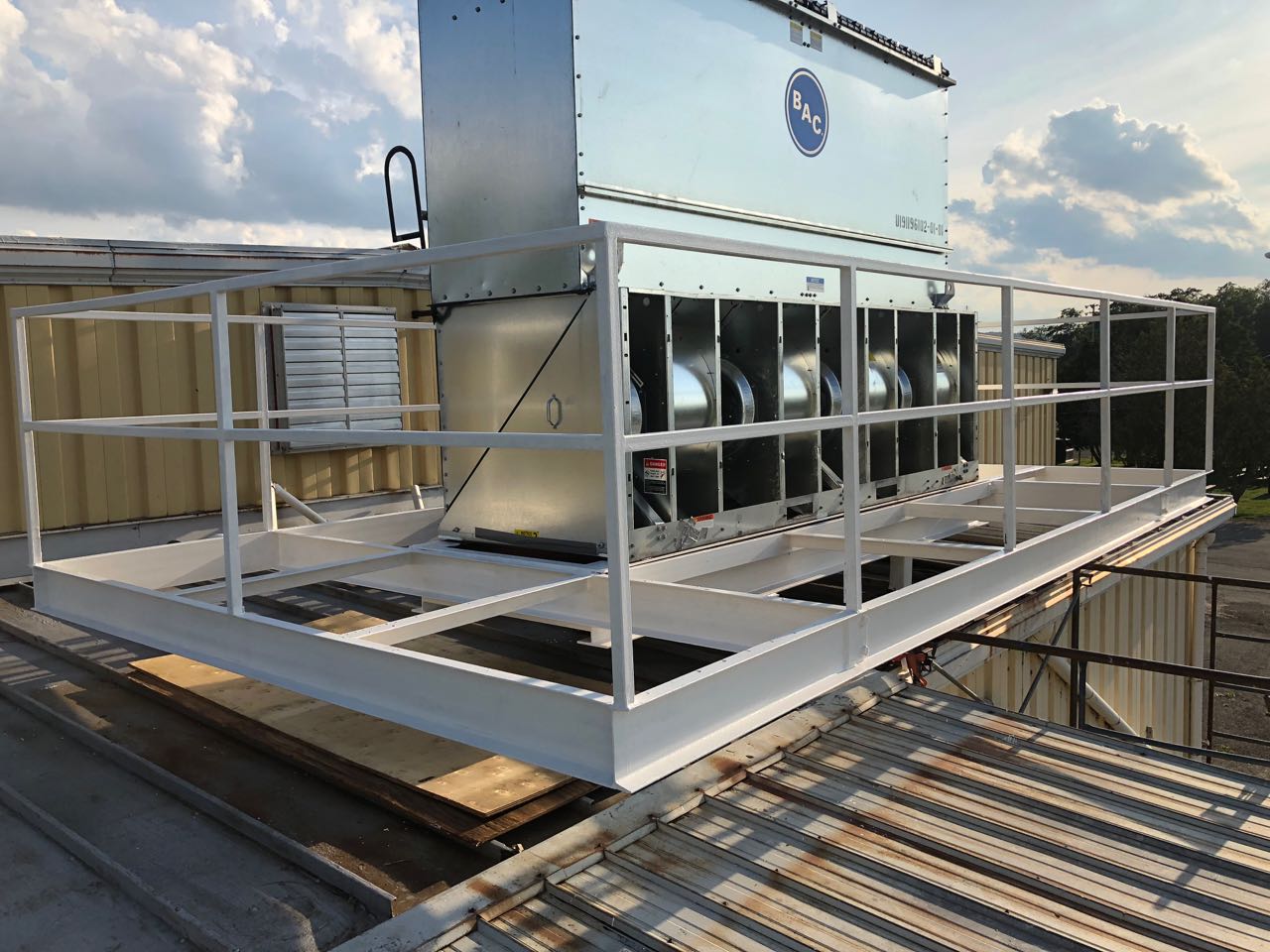

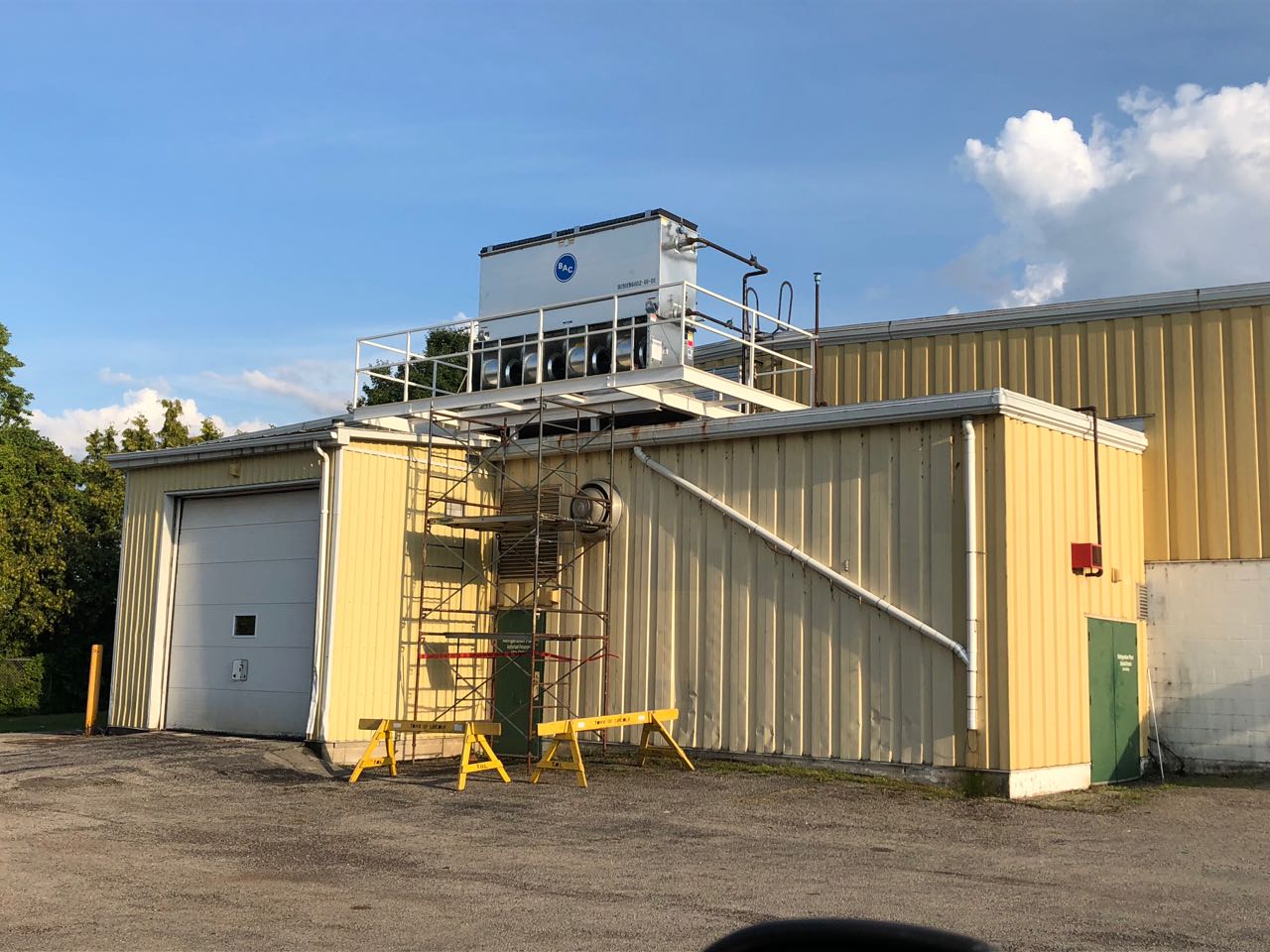

   After top coat applications of PPG Amerlock 2 - Aluminium.

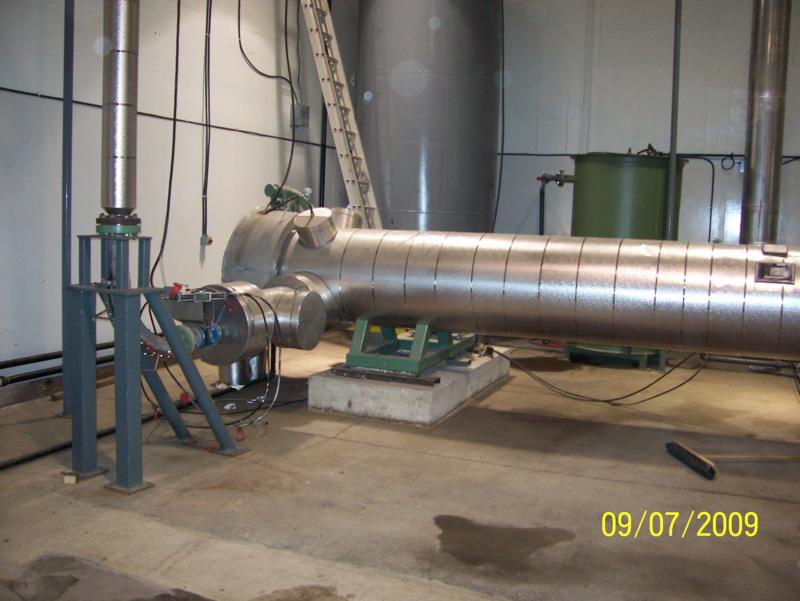

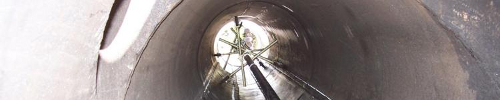

Internal Pipe Blasting

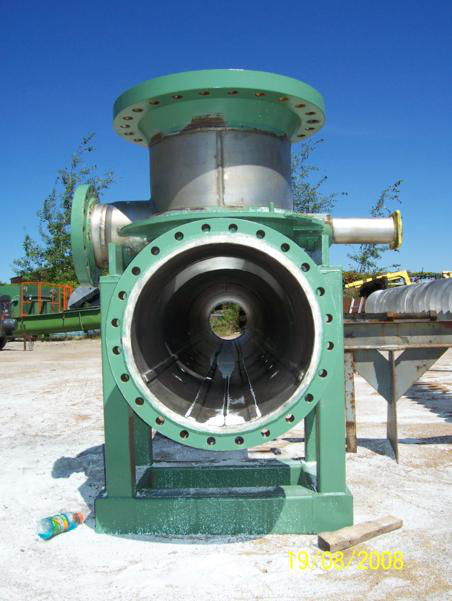

   Our specialized equipment allows us to blast industrial piping internals. This is by far the most efficient and cost effective way to clean the internals of augurs and other pipe transportation equipment, restoring the equipment to the required specifications.
